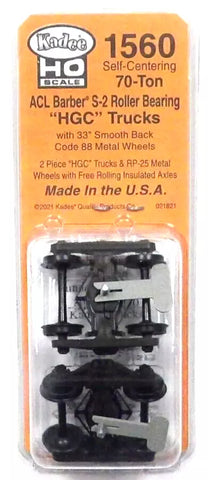

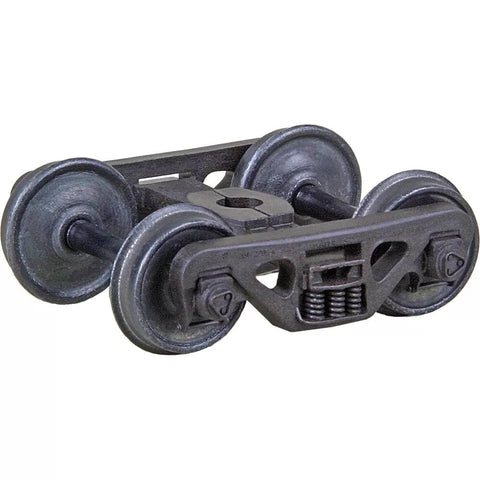

HO Scale Kadee #1560 Barber S-2 70-Ton ACL Roller Bearing Self Centering Trucks
OEM in Package/Box
#1560 Barber® S-2 70-Ton ACL Roller Bearing (extended retaining bolts) Self Centering Trucks with 33" Smooth Back Code 88 Semi-Scale Wheels - HO Scale
"HGC" Two Piece Fully Equalized Trucks
The Self-Centering Action trucks self align themselves parallel with the car for easier placement on track.
Mounts with a #2 or 2-56 screw.
Introduced in the late 1950’s - Used in interchange even today.
"HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance.
"HGC" Two Piece Fully Equalized Trucks Features:
- Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track.
- Code 88 (.088) #530 33" Smooth Back Wheels
- "HGC" Weighs nearly the same as Metal Trucks
- Superior Rolling Ability
- #442 Brake Pads - Wide Bolster
- Accurate Markings
- Incredible Detail True to Prototype
- Non-Magnetic Metal Wheels
- Highly Flexible Fully Equalized Trucks
- Smooth tracking Free Rolling Contoured Insulated Axles
- RP-25 Free Rrolling Wheels
- Patent number 7,434,518 B2
Package Includes:
- (2) Each #1560 A.S.F.® Barber® S-2 70-Ton ACL Roller Bearing (extended retaining bolts) Self Centering Two Piece Trucks (assembled)
- (2) #442 Brake Pads - Wide Bolster
- (2) Each Self Centering Bushing
- (2) Each #2 Screw
